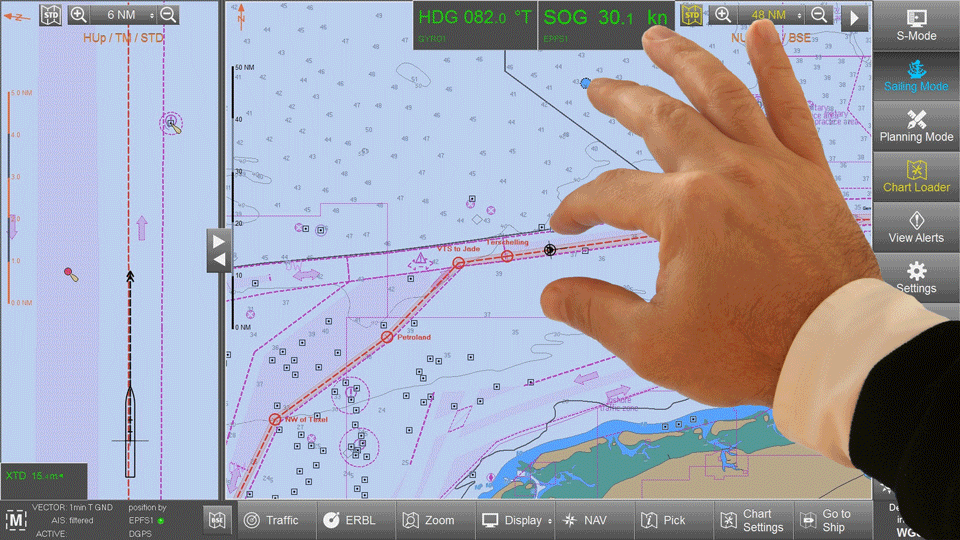

ORCA Master G2 is an all new professional Electronic Chart System (ECS) for marine navigation.
It is a high-end ECS application specially developed for touchscreen operation.
It offers all functions required in a type approved navigation system but remains intuitive in its usability.
ORCA Master G2 can be used as an ECS for offshore, inshore and inland operation.

OEM Versions / ECDIS
The product can be provided as software only, customized to OEM partners‘ requirements and in a package together with IEC conform hardware and type approval.



Key features

• Innovative design optimized for touch screen;
• Touch screen optimized and backwards compatible with any standard PC / LT performing with HD;
• Flexible user interface / user can adjust the display in accordance with individual requirements;
• Optimized for left and right hand use;
• Selectable display option such as S-Mode panel or advanced Info Label technology;
• Function to enlarge the navigation screen via hiding temporarily not needed information label;
• Print screen functionality.

Required features for professional Navigators

• File Management System;
• Trip data logging for playback analysis;
• Advanced and fast route planning via touchscreen actions;
• Automated selection of the best chart integrated in a mixed mode for RNCs and ENCs;
• Select a main and secondary position source; define fallback scenario;
• User defined scenario dependent Profiles;
• Restore system settings functionality;
• Anti-grounding functionality and advanced pre-warning system;
• Display adjustable to various day/night light conditions;
• Flexible settings to customize the display of own ship (incl. various vectors, predictions, distances, bearings, past tracks etc.);
• Split screen for docking and manoeuvring;
• Dead reckoning;
• North-Up and Head-Up mode;
• Immediate route leg check while creation;
• Watch Handover checks;
• Track records function;
• ERP calculator (Estimated Rendez-vous Point).

Functional Description

• Own ship position, heading and speed

• EPFS (GPS) x 2
• EchoReference (up to 4 targets processing)
• Dead Reckoning
• Visual LOP and ARPA LOP transfer
• Gyrocompass (up to 2)
• Speed Log

• Traffic Information

• Target Data from AIS
• Target Data from ARPA-Radar (Up to 2)
• AIS and ARPA Target association
• Radar Overlay (Optional Hardware required)

• Chart Data Formats

• S57 /- S63 (from various RENCs)
• ACES (ChartWorld SENC)
• AIO+
• ARCS (UKHO Raster Charts)

• Chart Maintenance

• ENC updating by media
• Automatic ENC updating from ftp- Server
• Automated ENC Updates via ship's E-mail

• Hardware Options

• Panel PCs with touch-screen
• Notebooks and tablets (rugged)
• Customized solutions for turn-key ready system
